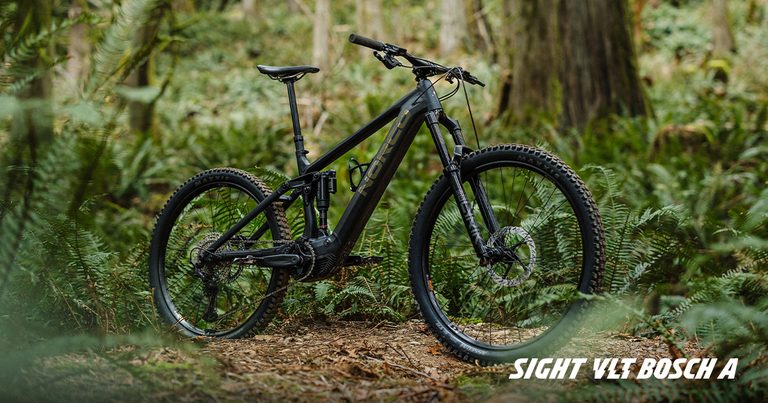

Norco Sight VLT Bosch A3 Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Seatpost diameter

31.60 mm

Stock build

• ForkDVO Diamond 36 Core, Low Speed Compression | Rebound , 160mm, 44mm Offset
• StemNorco 6061, 40mm Length, 35mm Clamp
• ChainShimano CUES CN-LG500-Q, 11sp
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Solano Med, 142x240 mm, Steel Rails
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano CUES CS-LG3400-11, 11-50T, 11sp
• CranksetProWheel Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
• SeatpostTranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
• ShiftersShimano CUES U6030, 10-speed
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
• Rear TireMaxxis Minion DHR II, 3C Maxx Grip DD, 27.5.5x2.4", Folding
• Front TireMaxxis Assegai 3C MaxxGrip EXO+ (2.5)
• Rear BrakeTRP Slate EVO, Organic Pads
• Rear ShockDVO Topaz Core, 205x60mm TR
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, HG, 32H, C-Lock
• Front BrakeTRP Slate EVO, Organic Pads
• Front WheelShimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
• Brake LeversTRP Slate EVO
• Bottom BracketBosch PX
• Rear Brake PadsOrganic Pads
• Rear DerailleurShimano CUES U6020
• Front Brake PadsOrganic Pads
• Rear Brake RotorTRP RS01E, 180mm, 2.3mm Thickness, Centerlock
• Front Brake RotorTRP 203mm, 2.3mm Thickness, Centerlock
