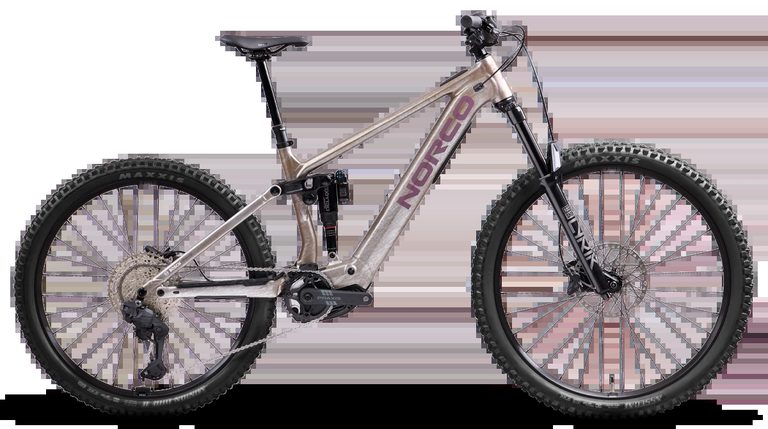

Norco Sight VLT Bosch A1 Gen 5

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29/27.5"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Headset standard

ZS44/28.6 | ZS56/40

Max tire size

2.35" – 2.5"

Stock build

• ForkRockShox Lyrik Select+ (160mm)
• StemNorco 6061, 40mm Length, 35mm Clamp
• ChainShimano Deore M6100
• GripsWTB Wavelength, 140mm Length
• SaddleWTB Solano Med, 142x240 mm, Steel Rails
• HeadsetFSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
• CassetteShimano Deore, 10x51
• CranksetPraxis HD Aluminum Bosch Cranks, 34T, 155mm (S1,S2,S3) - 160mm (S4, S5)
• SeatpostTranzX YSI160 RAD+, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
• ShiftersShimano Deore Di2 SW-M6250-IR, 12spd
• HandlebarNorco 6061 DB Alloy, 800mm, 25mm rise (S1,S2) - 35mm rise (S3,S4,S5)
• Rear TireMaxxis Minion DHR II, 3C Maxx Grip DD, 27.5x2.4", Folding
• Front TireMaxxis Assegai, 3C MaxxGrip EXO+, 29x2.5", Folding
• Rear BrakeShimano Deore BR-M6120
• Rear ShockRockShox Super Deluxe Select+ (205x60mm)
• Rear WheelShimano FH-TC500-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
• Front BrakeShimano Deore BR-M6120
• Front WheelShimano HB-MTC500-15-B,15x110mm Boost, 32H, C-lock
• Brake LeversShimano Deore M6100
• Bottom BracketBosch PX
• Rear Brake Padsmetallic pads
• Rear DerailleurShimano Deore Di2 RD-M6250, SGS, 12spd
• Front Brake Padsmetallic pads
• Rear Brake RotorShimano RT-64, 180mm, C-Lock
• Front Brake RotorShimano RT-64, 203mm, C-Lock
