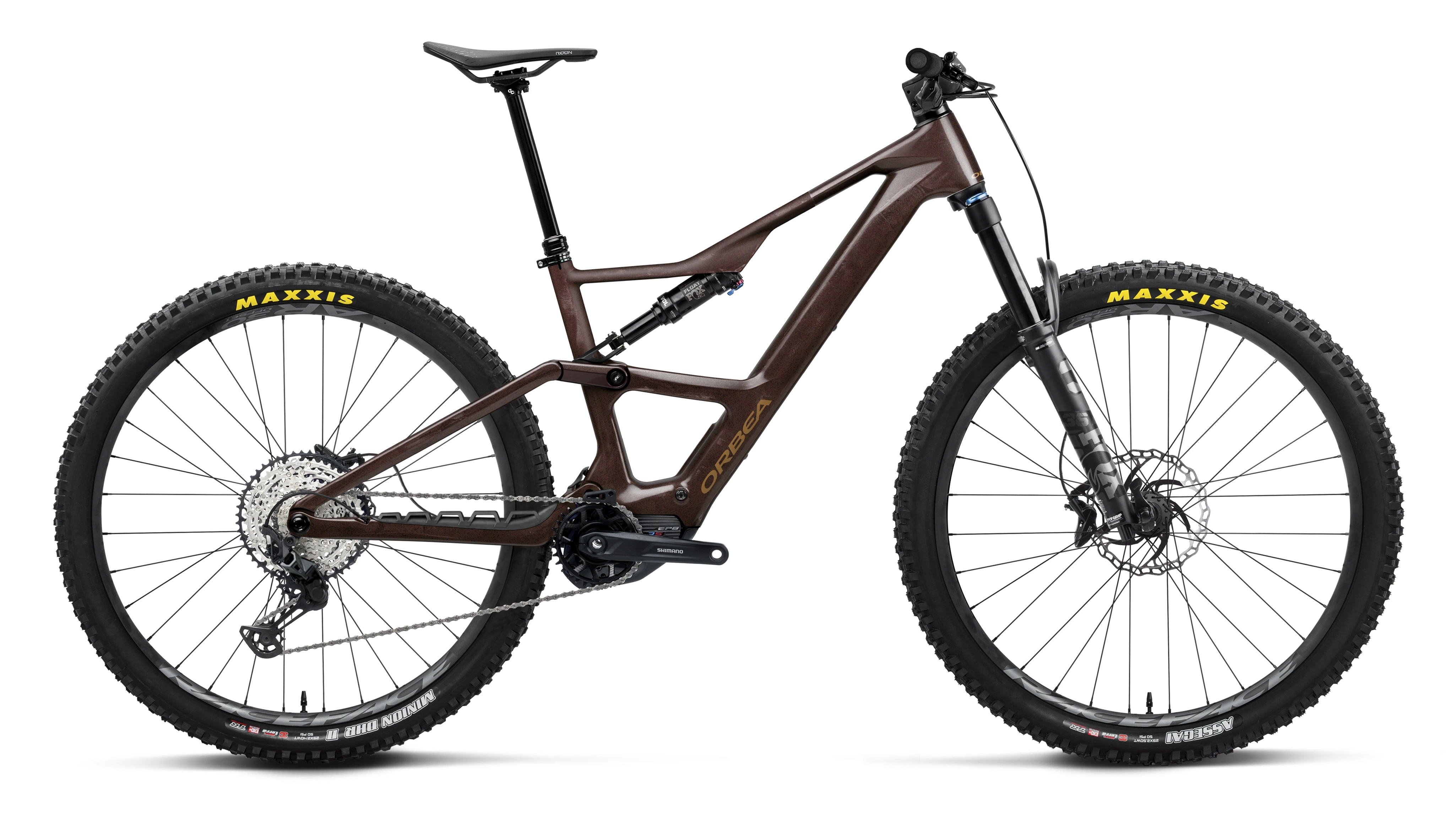

2025 Orbea Rise LT M20 20mph

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

150 mm

Rear axle spacing

148 mm

Headset standard

1-1/2"

Stock build

• ForkFox 36 PERFORMANCE - GRIP 160 mm
• StemOrbea OC Mountain Control 20, 0º
• ChainShimano M6100
• GripsOrbea OC Lock On
• SaddleFizik Terra Ridon X5
• HeadsetAlloy 1-1/2", Black Oxidated Bearing
• CassetteShimano CS-M7100 10-51t 12-Speed
• CranksetShimano Steps EM600
• SeatpostOrbea OC Mountain Control MC22
• ShiftersShimano SLX M7100 I-Spec EV
• HandlebarOrbea OC Handlebar MC31 Rise 20
• Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
• Front TireMaxxis Assegai 29x2.50WT F60 3C MaxxGrip/EXO /TR
• Rear BrakeShimano Deore BR-M6120
• Rear ShockFox FLOAT Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
• Rear WheelRace Face AR 30c Tubeless Ready (29"Front / 29"Rear)
• Front BrakeShimano Deore BR-M6120
• Front WheelRace Face AR 30c Tubeless Ready (29"Front / 29"Rear)
• Rear DerailleurShimano SLX M7100 SGS
• Rear Brake RotorShimano RT64 Rotors 203mm front / 180mm rear
• Front Brake RotorShimano RT64 Rotors 203mm front / 180mm rear
