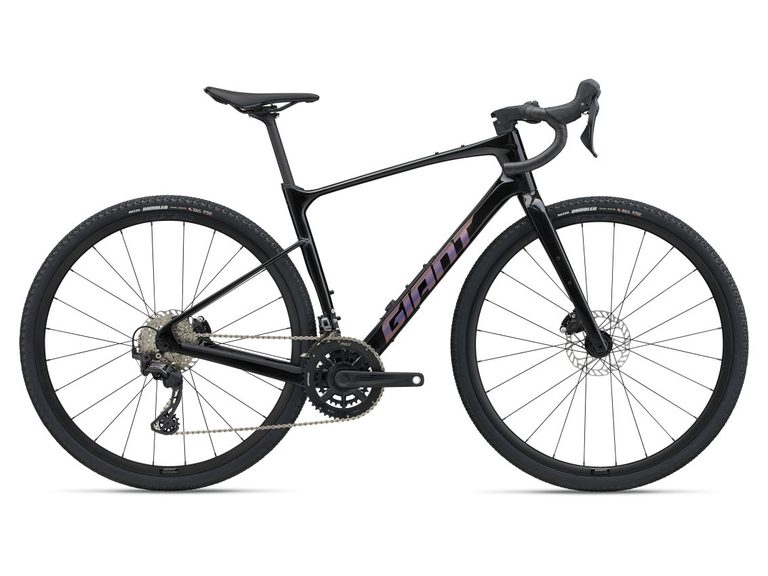

2025 Giant Revolt Advanced 2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

700c"

Rear axle spacing

142 mm

Headset standard

OverDrive tapered steerer, 1-1/4" lower, 1-1/8" upper

Bottom bracket

PowerCore, 86mm, press fit (BB86)

Max tire size

53mm

Stock build

• ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• StemGiant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
• ChainKMC X12L-1
• GripsStratus Lite 3.0
• SaddleGiant Grit
• CassetteShimano CS-HG710, 12-speed, 11x36
• CranksetFSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• SeatpostGiant D-Fuse, composite, 14mm offset
• ShiftersShimano GRX RX-610, 2x12
• HandlebarGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Rear TireGiant Crosscut Grip TR, 700x40c, tubeless
• Front TireGiant Crosscut Grip TR, 700x40c, tubeless
• Rear BrakeShimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
• Rear WheelGiant alloy, 12mm thru-axle
• Front BrakeShimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
• Front WheelGiant alloy, 12mm thru-axle
• Brake LeversShimano GRX RX-610 hydraulic
• Bottom BracketFSA BB-AL86, press fit
• Rear DerailleurShimano GRX RX-820
• Front DerailleurShimano GRX RX-820
• Rear Brake RotorGiant Shimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
• Front Brake RotorGiant Shimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
