Bike
Gravel

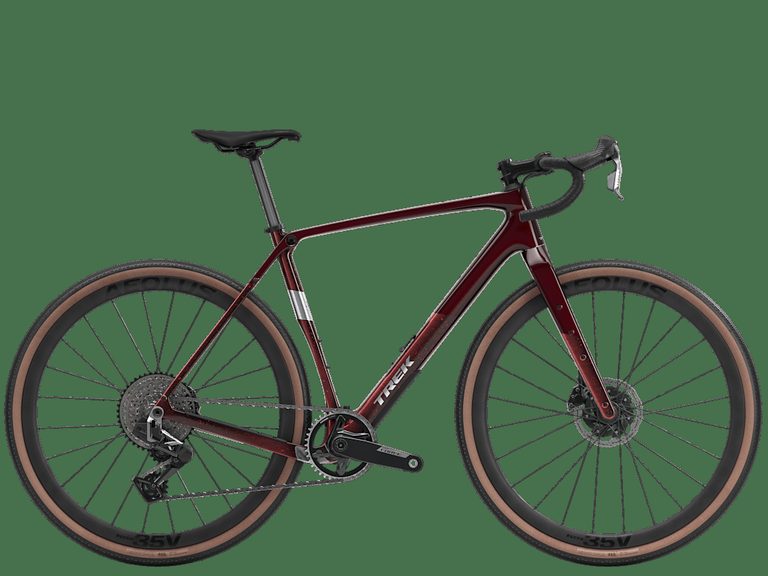

Trek Checkpoint SL 7 AXS Gen 3
- Type
- Bike
- Category
- Gravel
- Weight
- 20.6 lbs (9.3 kg)
- MSRP
- $5,999.99
Frame & fit interfaces
The standards that decide what fits this bike.
- Frame material
- Carbon
- Wheel size
- 700c"
- Rear axle spacing
- 142 mm
- Seatpost diameter
- 27.20 mm
- Headset standard
- RCS Headset System
- Bottom bracket
- T47
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
Stock build
- ForkTrek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
- StemBontrager Size:XS / Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size:S, M / 80mm length; Size:ML, L / 90mm length; Size:XL / 100mm length
- ChainSRAM Force E1, 12/13 speed
- SaddleVerse Short Elite, hollow magnesium rails, 145mm width
- CassetteSRAM Force XPLR XG-1371 Cassette
- CranksetSRAM Size:XS, S / SRAM Force E1 XPLR, 40T, DUB Wide, 160mm length; Size:M, ML / SRAM Force XPLR, 40T, DUB Wide, 165mm length; Size:L, XL / SRAM Force XPLR, 40T, DUB Wide, 170mm length
- SeatpostBontrager carbon, 27.2mm, 8mm offset, 330mm length
- ShiftersSRAM Force AXS E1
- HandlebarBontrager Size:XS, S / Bontrager Pro Gravel, 40cm width; Size:M, ML / Bontrager Pro Gravel, 42cm width; Size:L / Bontrager Pro Gravel, 44cm width; Size:XL / Bontrager Pro Gravel, 46cm width
- Rear TireBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Front TireBontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Rear BrakeSRAM Force AXS hydraulic disc, flat mount
- Rear WheelBontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
- Front BrakeSRAM Force AXS hydraulic disc, flat mount
- Front WheelBontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
- Bottom BracketSRAM DUB Wide, T47 threaded, internal bearing
- Rear DerailleurSRAM Force XPLR AXS, 46T max cog
- Rear Brake RotorSRAM Paceline X, rounded, centerlock, 160mm
- Front Brake RotorSRAM CenterLine X, centerlock, round edge, 160mm
