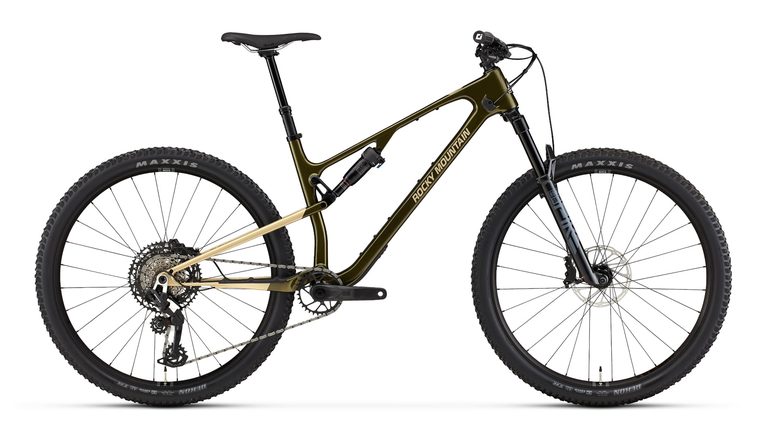

2025 Rocky Mountain Element Carbon 50

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Seatpost diameter

30.90 mm

Bottom bracket

Press Fit BB

Max tire size

29 x 2.6

Stock build

• ForkRockShox Pike Select 130mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
• StemRocky Mountain 35 XC | 0° Rise | All Sizes = 50mm
• ChainSRAM Eagle 70 Transmission
• GripsODI Elite Pro Lock On
• SaddleWTB Silverado Race 142 | Cromoly Rails
• HeadsetFSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
• CassetteSRAM XS-1270 Eagle Transmission Cassette
• CranksetSRAM Eagle 70, 165/170mm, 55mm chainline, 32T
• SeatpostTranzX Tranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy MMX Lever | 30.9mm | XS = 120mm | SM = 150mm | MD = 170mm | LG = 200mm | XL = 230mm
• ShiftersSRAM Eagle 90 Transmission
• HandlebarRocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
• Rear TireMaxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4
• Front TireMaxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4
• Rear BrakeSRAM Motive Bronze
• Rear ShockRockShox Deluxe Select+ | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm |Size-Specific tune in FAQ
• Rear WheelDT Swiss 370 Ratchet LN
• Front BrakeSRAM Motive Bronze
• Front WheelNovatec D791SB Sealed Boost 15mm
• Bottom BracketSRAM BB92 DUB Wide
• Rear Brake PadsMetal Pads
• Rear DerailleurSRAM Eagle 90 Transmission
• Front Brake PadsMetal Pads
