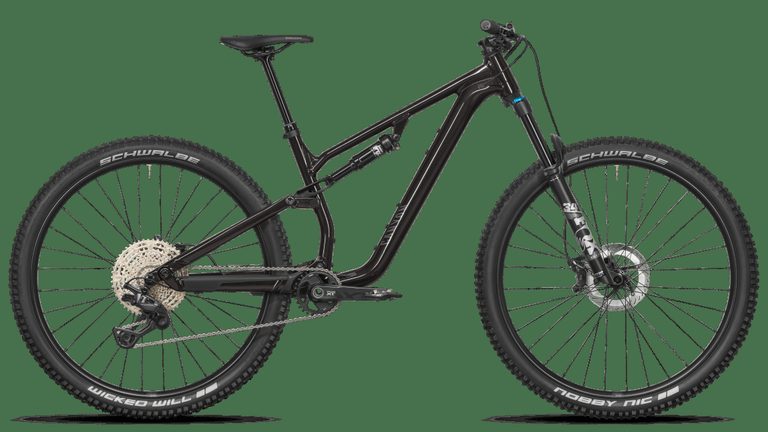

Canyon Neuron 6

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear axle spacing

148 mm

Seatpost diameter

30.90 mm

Bottom bracket

BSA HT2 68/73

Stock build

• ForkFox 34 Rhythm, Axle dimension 15x110 mm, Stanchion Diameter 34 mm, Travel 140 mm, Fork steer tube diameter 1 1/8" - 1,5", Offset 44 mm, Weight 1950 g
• StemCanyon ST0039, Fork steer tube diameter 1 1/8", Clamping diameter 31,8 mm, Material Aluminium (AL)
• ChainShimano Deore M6100
• GripsErgon GX10
• SaddleErgon SPS20 NEO, Gender Unisex, Weight 286 g
• CassetteShimano CS-M6200-12
• CranksetShimano M8200, Number of chainrings 1
• SeatpostCanyon SP0081, Seatpost diameter 30,9 mm, Material Aluminium (AL), Weight 622 g
• ShiftersShimano XT Shift Lever SL-M8200-IR
• HandlebarCanyon HB0073, Clamping diameter 31,8 mm, Rise 15 mm
• Rear TireSchwalbe Nobby Nic, Width 2,4", Weight 960 g
• Front TireSchwalbe Wicked Will, Width 2,4", Weight 970 g
• Rear BrakeShimano Deore XT BR-M8220
• Rear ShockFox Float Rhythm, Weight 262 g
• Rear WheelCanyon XC 30 AL Wheel, Axle dimension 12x148 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Aluminium, Weight 1357 g
• Front BrakeShimano Deore XT BR-M8220
• Front WheelCanyon XC 30 AL Wheel, Axle dimension 15x110 mm, Rotor mount Center Lock, Inner width 30 mm, Rim material Aluminium, Weight 1077 g
• Bottom BracketBSA 73, Bottom bracket standard BSA HT2 68/73, Weight 73 g
• Rear DerailleurShimano M8200, Cage length long, Weight 361 g
• Rear Brake RotorShimano Ultegra RT-CL800, Size 180 mm, Weight 145 g
• Front Brake RotorShimano Ultegra RT-CL800, Size 180 mm, Weight 145 g
