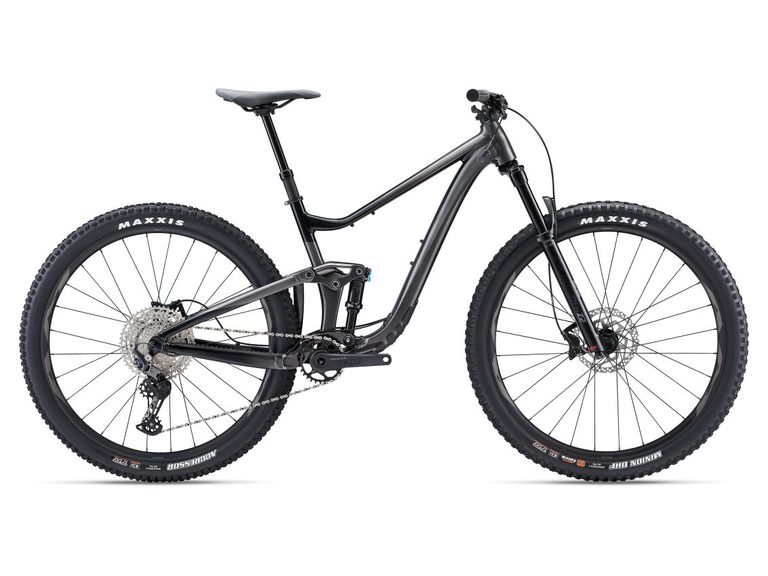

2022 Giant Trance 29 2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Wheel size

29"

Suspension

Full

Rear travel

120 mm

Rear axle spacing

148 mm

Headset standard

OverDrive (1-1/2" lower / 1-1/8" upper, tapered steerer)

Bottom bracket

PowerCore 92mm press fit

Max tire size

2.6"

Stock build

• ForkMarzocchi Z2, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
• StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• ChainKMC X-12
• GripsGiant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• SaddleGiant Romero
• CassetteShimano Deore, 10x51
• CranksetPraxis Cadet M24, 30t S:165mm, M:170mm, L:170mm, XL:170mm
• SeatpostGiant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
• ShiftersShimano Deore 11spd
• HandlebarGiant Contact TR35, 780x35mm
• Rear TireMaxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
• Front TireMaxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
• Rear BrakeTektro HD M745
• Rear ShockFox Float DPS Performance, 185/50, custom tuned for Giant
• Rear WheelGiant alloy, open-race sealed bearings
• Front BrakeTektro HD M745
• Front WheelGiant alloy, open-race sealed bearings
• Brake LeversTektro HD M745
• Bottom BracketPraxis press fit
• Rear DerailleurShimano Deore 11spd
