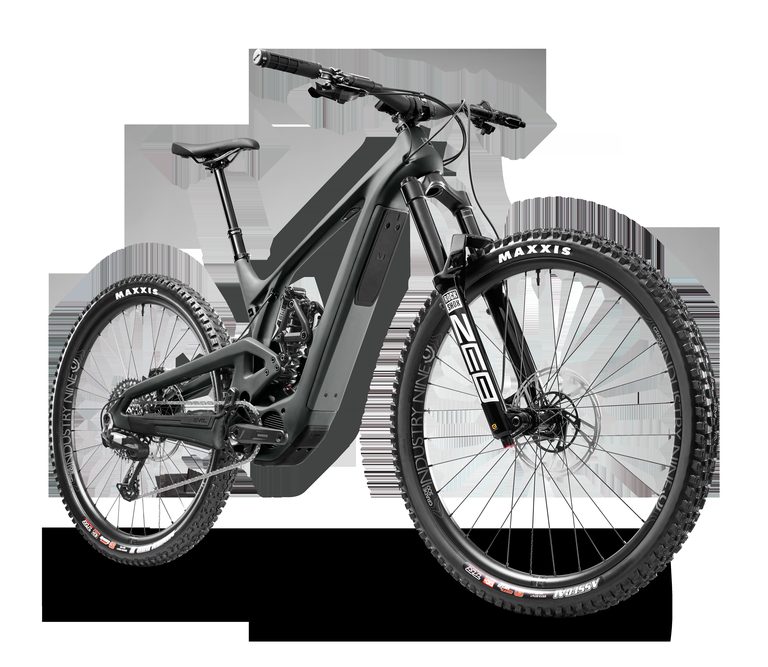

Evil Bikes Epocalypse SRAM Eagle 90

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Wheel size

29"

Suspension

Full

Rear travel

166.00 mm

Rear axle spacing

157.00 mm

Seatpost diameter

30.90 mm

Headset standard

ZS44/28.6 (Upper), ZS62/40 (Lower)

Max tire size

29x2.6"

Stock build

• ForkRockShox ZEB Ultimate, Charger 3.2 RC2 w/ ButterCups, 170mm Travel, 44mm Offset
• StemEvil 12 Gauge, Clamp: 35mm, Length: 45mm
• ChainSRAM GX Eagle T-Type Flat Top Chain
• GripsEvil Palmela Handerson lock-on
• SaddleWTB Solano Medium Fusion Form Chromoly
• HeadsetCane Creek 40 Series ZS Integrated Tapered Headset - Cups: ZS44/28.6 (Upper) and ZS62/40(Lower), Bearing: 36 x 45 - 41mm (Upper) and 36 x 45 - 52mm (Lower) ZN40 Zinc Coated, Crown Race: 28.6mm x 36 Integrated (U
• CassetteSRAM XS-1275 T-Type 12sp, 10-52T
• CranksetShimano FC-EM600, 160mm
• SeatpostBikeYoke Revive, S:125mm, M: 160mm, L:185m XL: 213mm
• ShiftersSRAM Eagle 90 T-Type Trigger
• HandlebarEvil Energy Bar, UD Carbon, Rise: 35mm, Clamp 35mm, Width: L/XL - 810mm, S/M - 780mm, Backsweep: 8, Upsweep: 5
• Rear TireMaxxis Minion DHR II 29x2.40WT F120x2 3C MaxxTerra/DD/TR
• Front TireMaxxis Assegai 29x2.50WT F60 3C MaxxGrip/EXO /TR
• Rear BrakeSRAM Maven Silver 4-piston hydraulic disc
• Rear ShockRockShox Super Deluxe Coil Ultimate RC2T, Trunnion 205x65, ML 320
• Rear WheelIndustry Nine 1/1 Triad Aluminum 29", Internal rim width: 30mm, Hub Width 110x15mm(unless upgrade is selected)
• Front BrakeSRAM Maven Silver 4-piston hydraulic disc
• Front WheelIndustry Nine 1/1 Enduro S V2 29", Internal rim width: 30mm, Hub Width 110x15mm(unless upgrade is selected)
• Rear DerailleurSRAM Eagle 90 T-Type
• Rear Brake RotorGalfer "Wave" 6 bolt OEM rotor, 203mmx2.00mm w/ MG003 magnet fitted
• Front Brake RotorGalfer "Wave" 6 bolt OEM rotor, 223mm x 2.00mm
