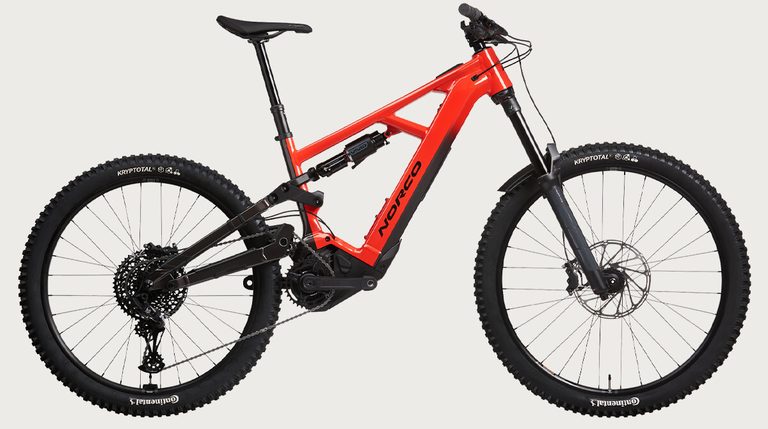

2024 Norco Range VLT A1

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Aluminum

Stock build

• ForkRockShox Zeb Ultimate, 180mm Travel, E-MTB Rated, Fender Included
• RimsWTB HTZ Trail 32H, 27.5"/29"
• Stem6061 Alloy, 40mm Length, 35mm Clamp
• ChainSRAM SX Eagle
• FrameButted Aluminum, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
• GripsWTB Wavelength
• SaddleNorco Alloy Nutted Clamp, 34.9mm ID
• HeadsetFSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
• CassetteSRAM PG1210 Eagle 11-50T
• Cranksete*thirteen e*Plus 165mm
• Rear HubBear Pawls BMB-008, 12x148mm Boost, HG, 6 Bolt
• SeatpostTranzX YS134 Dropper, 34.9mm 150mm (S1), 170mm (S2, S3), 200mm (S4, S5)
• ShiftersSRAM NX Eagle MMX
• Front HubBear Pawls BMB-013, 15x110mm Boost, 6 Bolt
• HandlebarButted 6061 Alloy, 800mm, 25mm Rise
• Rear TireContinental Kryptotal Enduro 27.5" x 2.4", Foldable
• Front TireContinental Kryptotal-F Enduro 29" x 2.4", Foldable
• Rear BrakeSRAM Code RSC 4 Piston, Sintered Pads
• Rear ShockRockShox Vivid Select+, 230x65mm
• Rear WheelRockShox Maxle Stealth 110x15
• Front BrakeSRAM Code RSC 4 Piston, Sintered Pads
• Front WheelRockShox Maxle Stealth 110x15
• Brake LeversSRAM DB8
• Rear ShifterSRAM NX Eagle MMX
• Bottom BracketBosch BES3 DU
• Headset Spacer2 x 10mm, 1x 5mm
• Seatpost ClampNorco Alloy Nutted Clamp, 38.5mm
• Spokes/NipplesSapim Sprint Butted Stainless Black
• Rear DerailleurSRAM GX Eagle
• Rear Hub SkewerAxle Assembly, L174, TL13 M12x1.0
• Front Hub SkewerRockShox Maxle Stealth 110x15
• Rear Brake RotorSRAM Centerline, 200mm
• Front Brake RotorSRAM Centerline, 200mm
