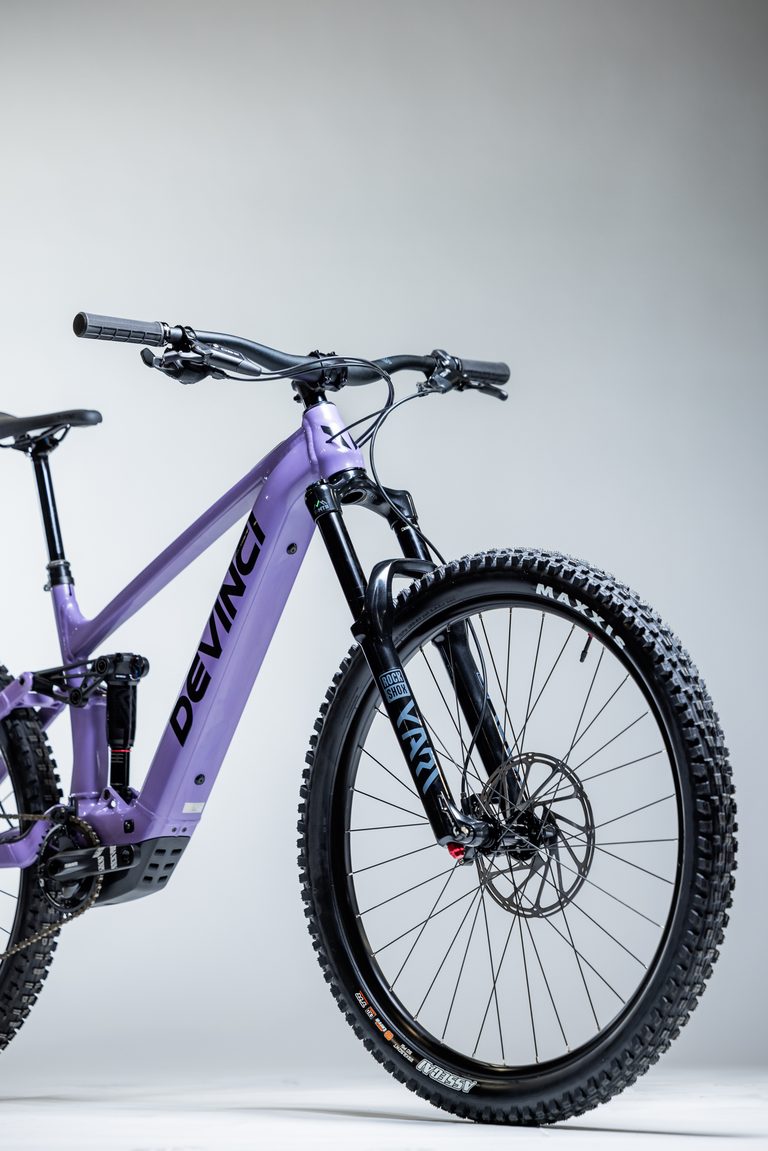

2024 Devinci E-Troy Lite

Frame & fit interfaces

The standards that decide what fits this bike.

Rear axle spacing

12.00 mm

Seatpost diameter

240.00 mm

Max tire size

27,5'' x 2.6”

Stock build

• ForkAxle-to-Crown measurement 571 mm / Offset 44 mm
• StemRaceFace Turbine R35 | B:35mm | L:40mm | 0°
• Chain55 mm
• MotorBosch Performance Line SX | Smart System
• BrakesSRAM Maven Silver
• Rotors220 mm
• SaddleSDG BELAIR Max eMTB
• BatteryBosch CompactTube 400 - 400Wh
• HeadsetTop ZS44 | Bottom ZS56
• ShifterSRAM AXS POD | 12s
• CassetteSRAM XS1275 | T-TYPE | 12s | 10-52T
• ComputerBOSCH System controller BRC3100
• CranksetCrankarm Sram GX 155
• Rear Hub12 x 148 Boost
• Rear RimRaceFace ARC30 27.5 | 30mm inner | TR
• SeatpostS → 240 mm / M → 270 mm / L → 300 mm / XL → 340 mm
• Chainring38T - 32T
• Front HubRaceFace Vault | TA 15x110mm | 6bolts
• Front RimRaceFace ARC30 29 | 30mm inner | TR
• HandlebarRaceFace ERA 35 | B:35mm | R:40mm | W:800mm
• Rear Tire27,5'' x 2.6”
• DerailleurUDH™
• Front TireMaxxis Assegai | 29x2.5WT | 3C | EXO+ | TR | MaxxGrip
• Rear BrakeSRAM Maven Silver
• Rear ShockTrunnion | 185 x 55 mm
• Seat ClampAlloy CNC | 34.9mm
