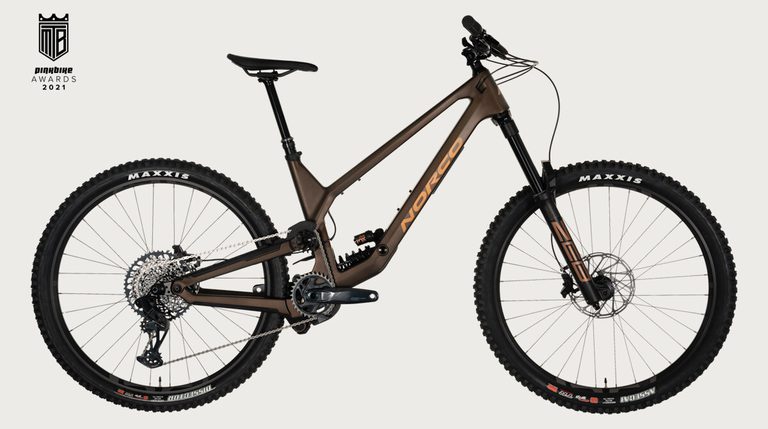

2023 Norco Range C2

Frame & fit interfaces

The standards that decide what fits this bike.

Frame material

Carbon

Stock build

• ForkRockShox ZEB Ultimate, Charger 3 RC2, Butter Cups, 170mm Travel, 44mm Offset
• RimsStan's Flow S2, 32H, 29"
• StemCNC Alloy, 40mm Length, 35mm Clamp
• ChainSRAM Eagle
• FrameFull Carbon, 170mm Travel, UDH, Ride Aligned™
• GripsDMR DeathGrip Soft, Thin (S, M), Thick (L,XL)
• SaddleErgon SM10 Enduro
• ValvesStan's Tubeless
• HeadsetFSA #57E Internal Sealed Bearing
• SealantStan's - 200ml
• CassetteSRAM Eagle XG 1275, 10-52T
• CranksetSRAM GX Eagle, DUB, 32T, 170mm
• Rear HubRace Face Trace 12x148mm Boost, XD, 6 Bolt
• SeatpostTranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M). 200mm (L, XL)
• ShiftersSRAM GX Eagle
• Front HubRace Face Trace 15x110mm Boost, 6 Bolt
• HandlebarDeity Ridgeline, 800mm, 25mm Rise
• Rear TireMaxxis Minion DHRII 2.4", WT, EXO+, 3C MaxxGrip, TR
• Front TireMaxxis Assegai 2.5", DD, 3C MaxxGrip, TR
• Rear BrakeSRAM Code R, 4 Piston, Metallic Pads
• Rear ShockFox DHX2 Factory Coil, HSC/LSC, HSR/LSR, Custom Tune, 205x62.5mm Trunnion, 400lb/in (S), 450lb/in (M), 500lb/in (L), 550lb/in (XL)
• Rear WheelStan's NoTubes Flow S2, 32H, 29"
• Chain GuideCustom MRP SXg
• Front BrakeSRAM Code R, 4 Piston, Metallic Pads
• Front WheelStan's NoTubes Flow S2, 32H, 29"
• Rear ShifterSRAM GX Eagle
• Bottom BracketSRAM DUB PF92
• Spokes/NipplesDT Competition DB Stainless
• Rear DerailleurSRAM GX Eagle
• Rear Brake RotorSRAM Centerline, 200mm
• Front Brake RotorSRAM Centerline, 200mm
